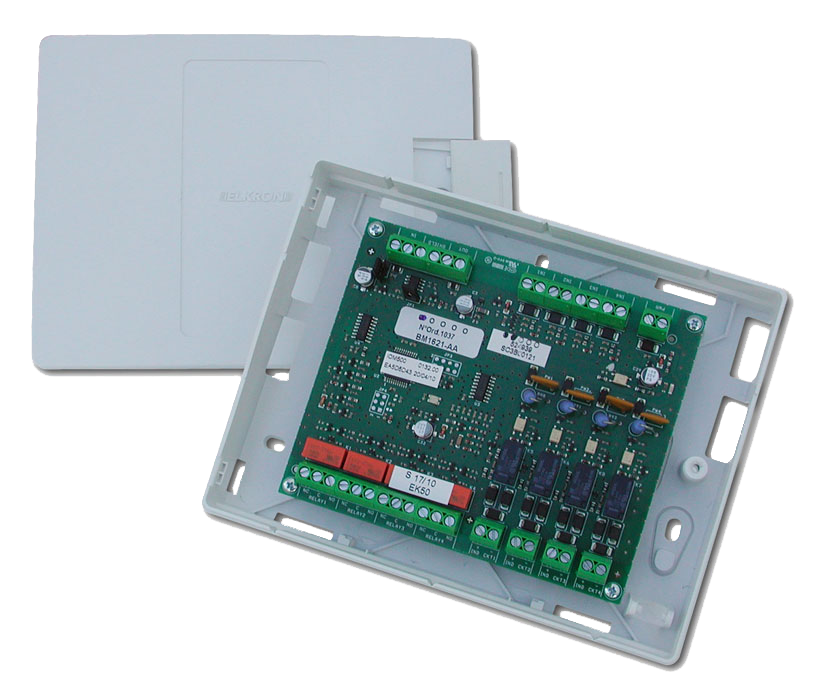

Multi actuator module, 4 inputs / 4 outputs
Reference : IOM500
Product code: 80SC3B00121
EAN code : 8033959745359
- For FAP500 and FAP500EVO series analogue control panels
- Certified according to EN 54-18:2005 by EVPU
- Configurable as 4 inputs or 4 outputs
- Input with monitoring of voltage-free NC/NO contacts
- Relay output: 1 A / 30 Vdc, resistive load
- Bi-colour LED: red, alarm; green, standby
- Short-circuit isolator
- Power supply voltage: 20 Vdc, modulated
- Average standby consumption: 250 µA at 20 Vdc
- Average alarm consumption: 2 mA at 20 Vdc
- Alarm repeat output: 12 mA maximum
- Operating temperature: -10 °C to 50 °C
- Maximum relative humidity: 95%
- Supplied with support box
- Dimensions: 180(W) x 138(H) x 45(D) mm, with support box
More information
| Specifications | |
|---|---|
| Technology | Analógico |
| Serie | FAP500 |
| Comunication Type | BUS |
| Inputs | 4 |
| Exit relay. | 4 |
| Mermaid output. | 4 |
| Zone output | 1 |
| Incorporates insulator | Yes |
| Manufactured according to Norma. | 4 |
| Dimensions - High (mm) | 138 |
| Dimensions - Width (mm) | 180 |
| Dimensions - Deep (mm) | 45 |
