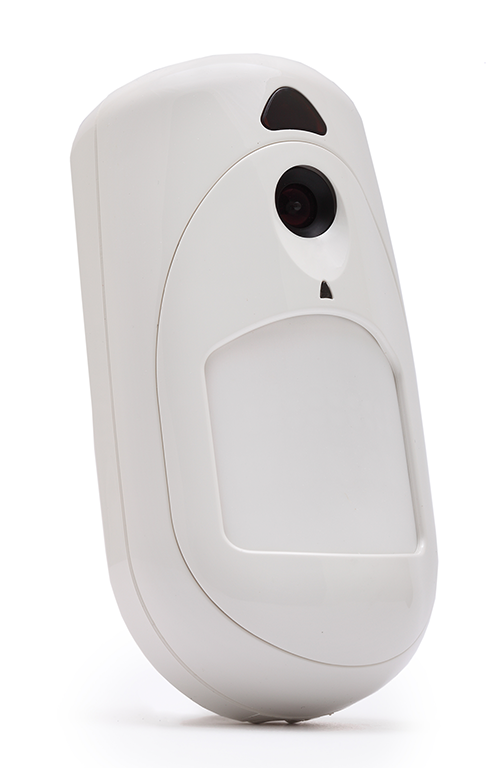

Grade 2 Wireless Infrared Detector with Camera for LightSYS+ Control Panel
Reference : PIRCAM95
Product code: RWX95CM8000
EAN code : 848584008087
- Infrared Detection Technology
- Wide-angle pigmented lens for protection against white light
- Detection range: 12 meters
- Tamper protection, suitable for corner installation
- Digital detector with true temperature compensation
- Camera resolution: VGA or QVGA
- Equipped with 2 RF channels: one for control and one for image transmission
- Indoor installation
- Recommended installation height: 2.20 to 2.50 meters
- Requires wireless module RVR432EW
- Includes two 3V lithium batteries, type CR123
- Dimensions: 68 mm (W) x 132 mm (H) x 56 mm (D)
More information
| Specifications | |
|---|---|
| Installation | Sin hilos |
| Technology | Vía Radio |
| Serie | LightSys + |
| Type | IR |
| Reading / coverage distance (m) | 56 |
| 56 | |
| Signaling | 0 |
| Action indicator output | No |
| Relay contacts | No |
| Integrated camera | No |
| Installation height | Interior |
| Incorporates base | No |
| Type Function | Con central |
| Use | Interior |
| Voltage | Interior |
| Certifications | Interior |
| Manufactured according to Norma. | 56 |
| Grade of security | Grado 2 |
| Dimensions - High (mm) | 132 |
| Dimensions - Width (mm) | 68 |
| Dimensions - Deep (mm) | 56 |
