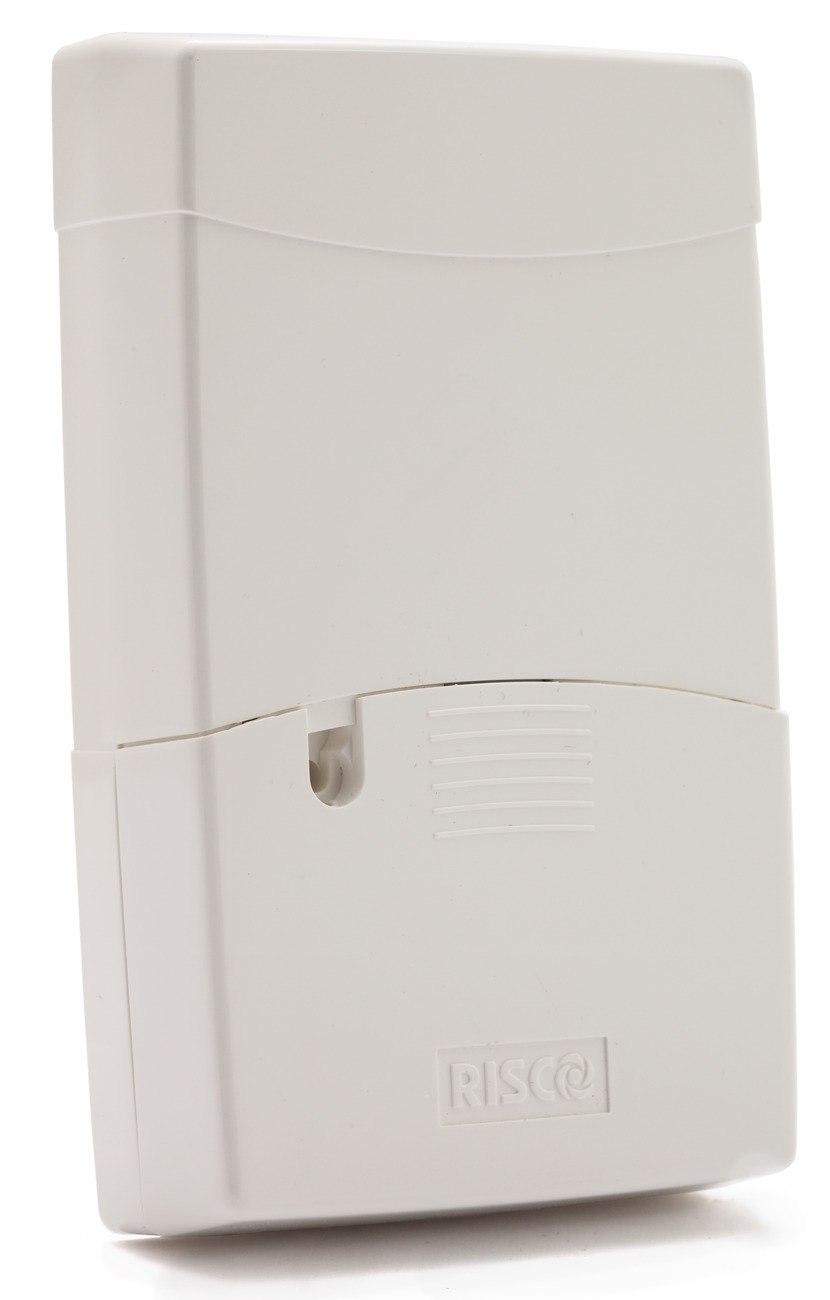

Wireless Video Receiver Grade 2 for LIGHTSYS+ Control Panel
Reference : RVR432EW
Product code: RP432EWV800
EAN code : 848584008865
- Connection to main panel: RS-485
- Operating voltage: 13V ± 10%
- Typical current consumption: 40 mA; max 65 mA
- Security output power: 10 mW (max)
- Video output power: 100 mW (max)
- Security frequency: 868.65 MHz
- Video frequency: 869.525 MHz
- RF immunity: According to EN50130-4
- Operating temperature: -10°C to 55°C
- Storage temperature: -20°C to 60°C
- Dimensions: 78 (W) x 126 (H) x 26 (D) mm
- Standard: EN50131-3, Grade 3, Environmental Class II, PD 6662:2017
